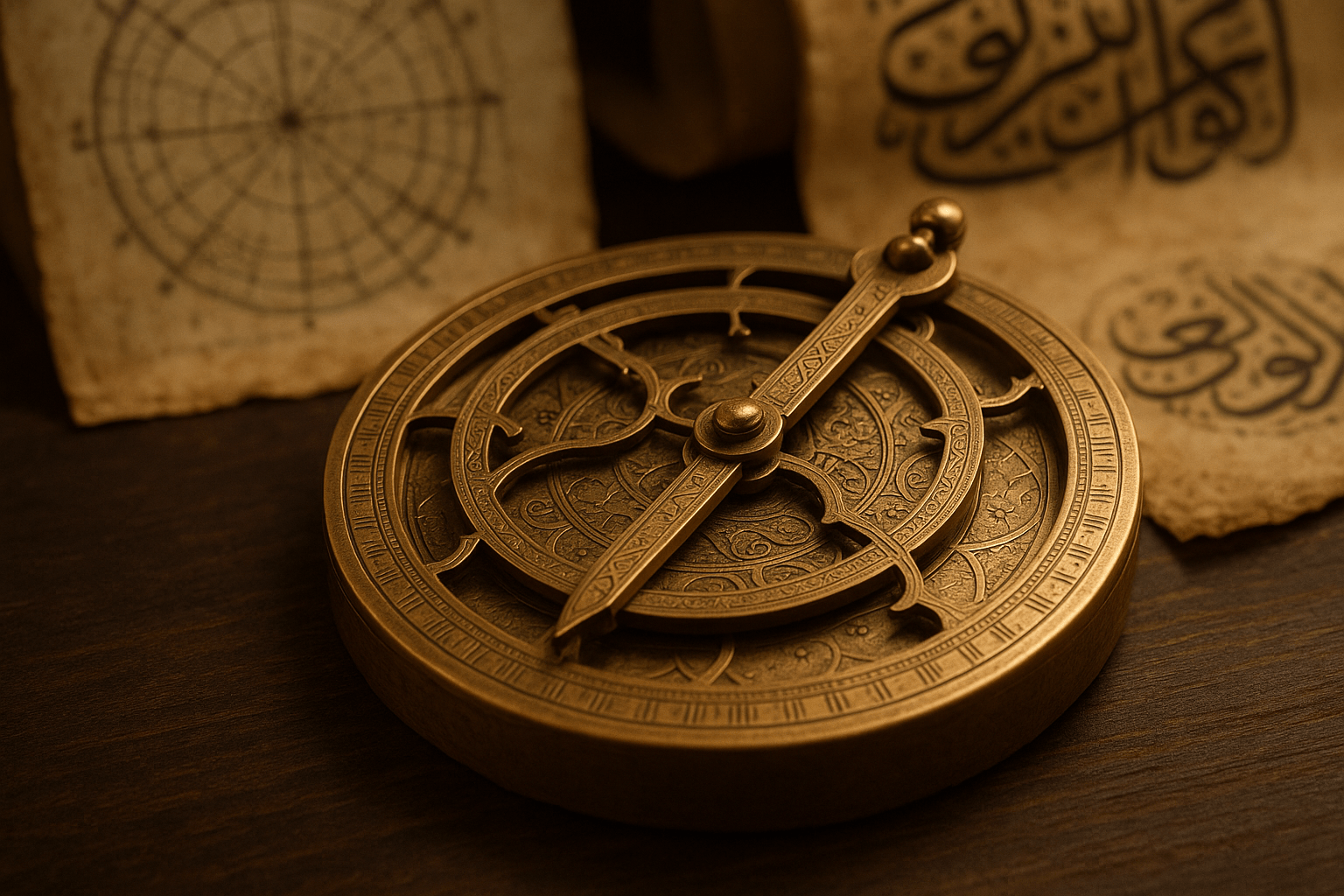

Imagine holding a universe in the palm of your hand. Not a digital simulation on a smartphone, but a solid, beautiful object of polished brass, intricately etched with lines and stars. This device, a masterpiece of art and science, could tell you the time, predict the rising of the sun, determine the direction of holy cities, and chart the very heavens. This was the astrolabe, the “mathematical jewel” perfected by the scholars and artisans of the medieval Islamic world.

Long before silicon chips and satellites, the astrolabe served as a sophisticated analog computer and a model of the cosmos. While its story begins in antiquity, it was in the flourishing intellectual centers from Baghdad to Córdoba that this instrument was transformed into one of the most important scientific tools for over a thousand years—a true gift to the stars.

A Glimpse into Ancient Origins

The astrolabe’s conceptual roots stretch back to Hellenistic Greece. The brilliant astronomer Hipparchus, working in the 2nd century BCE, is credited with discovering stereographic projection—the mathematical method of mapping a sphere onto a flat plane that forms the very heart of the astrolabe. This allowed the three-dimensional celestial sphere to be represented on a two-dimensional disk. Early versions of the instrument were described in Greek texts, most notably by Theon of Alexandria in the 4th century CE. However, these early astrolabes were largely theoretical, complex devices known to only a handful of elite scholars.

The Islamic Golden Age: Perfecting the “Mathematical Jewel”

The astrolabe’s true potential was unlocked during the Islamic Golden Age (roughly 8th to 14th centuries). As the Islamic civilization expanded, it absorbed and synthesized knowledge from Greek, Persian, and Indian sources. Through the great translation movement, centered at the House of Wisdom in Baghdad, seminal works of science and philosophy were translated into Arabic, sparking an unprecedented era of inquiry and innovation.

For Islamic scholars, the astrolabe was not merely a scientific curiosity; it was an instrument of profound practical and religious importance. Its refinement was driven by specific needs:

• Prayer (Salah): Muslims pray five times a day at times determined by the position of the sun. The astrolabe allowed anyone to accurately calculate the correct times for Fajr (dawn), Dhuhr (midday), Asr (afternoon), Maghrib (sunset), and Isha (night).
• Direction (Qibla): Prayer is also directed towards the Kaaba in Mecca. Using sophisticated trigonometric methods programmed into its design, the astrolabe could be used to determine the qibla from any given location.
• Calendar and Festivals: The Islamic calendar is lunar. The astrolabe helped determine the visibility of the new moon, essential for marking the beginning of months like Ramadan.

This fusion of faith and science propelled the astrolabe’s development. The first astrolabe in the Islamic world is often attributed to the 8th-century mathematician and astronomer Muhammad al-Fazari. Following him, a lineage of brilliant minds refined its construction and application. The great polymath Al-Khwarizmi, the “father of algebra”, wrote a treatise on its use. In the 10th century, Abd al-Rahman al-Sufi’s lavishly illustrated Book of Fixed Stars became a standard reference, mapping constellations and star positions that would be engraved onto astrolabes for centuries.

The craft even attracted female artisans like the 10th-century Mariam al-Asturlabi of Aleppo, who was renowned for her skill in manufacturing these complex devices. Perhaps the most significant leap came from Al-Zarqali (known as Arzachel in Latin) in 11th-century Al-Andalus (Islamic Spain). He invented the Saphaea Azarchelis, a universal astrolabe that, unlike its predecessors, could be used at any latitude, making it a far more versatile and powerful tool.

Anatomy of a Celestial Computer

So, how did this “star-taker” (from the Greek astrolabon) work? At its core, an astrolabe is a two-dimensional map of the three-dimensional sky. It consists of several key parts that fit together perfectly:

• The Mater: A hollow, disc-shaped body that holds all the other parts. Its rim is often marked with hours and degrees.
• The Tympan: A flat plate that sits inside the mater. Each tympan is engraved with a stereographic projection of the sky (horizon, altitude, and azimuth lines) for a specific latitude on Earth. A user would own several tympans to use in different cities.
• The Rete: The true artistic heart of the astrolabe, this is a beautiful, pierced-metal overlay representing the ecliptic (the sun’s path) and a map of the brightest stars, represented by sharp, curved pointers. This layer rotates over the tympan, simulating the daily motion of the stars.
• The Alidade: A rotating rule with sights on each end, fixed to the back of the astrolabe. It was used to measure the altitude (height) of the sun or a star above the horizon.

In a typical use case, an astronomer would measure the altitude of a known star with the alidade. They would then rotate the rete over the tympan until the pointer for that specific star lined up with the corresponding altitude line. The astrolabe would then reveal a wealth of information: the current time, the position of other celestial bodies, the time of sunrise, and much more.

The Astrolabe’s Journey Westward

The astrolabe’s journey into Europe was primarily through Al-Andalus and Sicily. In cities like Toledo, a vibrant hub of translation, Christian and Jewish scholars worked alongside their Muslim colleagues, translating Arabic scientific texts into Latin. Gerbert of Aurillac, who later became Pope Sylvester II, is credited with helping to introduce the astrolabe to Christian Europe in the late 10th century after studying in Islamic Spain.

By the late Middle Ages, the astrolabe had become the pre-eminent instrument for European astronomers and astrologers. Geoffrey Chaucer, author of The Canterbury Tales, thought the device so important that he wrote “A Treatise on the Astrolabe” in the 1390s—an English-language manual to teach his 10-year-old son how to use it. It was a vital tool for navigation during the early Age of Discovery, paving the way for later instruments like the sextant.

The Enduring Legacy of the Star-Taker

The astrolabe’s reign eventually ended. The invention of the pendulum clock provided more accurate timekeeping, the telescope revealed a universe far more complex than could be mapped on a brass plate, and the sextant offered more precision for navigation at sea. Yet, the astrolabe was never just a tool_._ It was a physical manifestation of humanity’s desire to understand its place in the cosmos.

Today, surviving astrolabes are treasured in museums around the world, admired not just as scientific artifacts but as objects of immense beauty. They are a profound testament to the ingenuity and intellectual brilliance of the Islamic Golden Age—a period that not only preserved ancient knowledge but forged it into something new, powerful, and utterly transformative. They are Islam’s gift to the stars, reminding us that the sky has always been a shared heritage, connecting cultures and civilizations across time.
